SINGLE 30A POWER MODULE

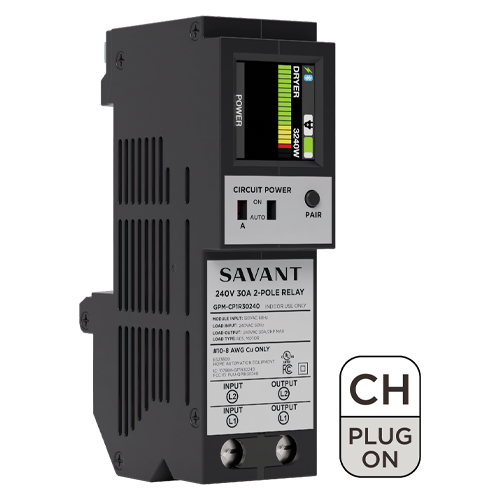

Single 30A Power Module (2-Pole, 240V AC with Current Transformer) controls and monitors a single circuit up to 30 amps; ideal for larger appliances and sub-systems.
Single 30A Power Module (2-Pole, 240V AC with Current Transformer) controls and monitors a single circuit up to 30 amps; ideal for larger appliances and sub-systems.
Single 30A Power Module (2-Pole, 240V AC with Current Transformer) controls and monitors a single circuit up to 30 amps; ideal for larger appliances and sub-systems.
KEY FEATURES
QO, PON works with 3/4 inch Schneider/Electric Square D™ QO™ plug-on neutral load centers.
QO, Pigtail works with 3/4 inch Schneider/Electric Square D™ QO™ load centers.
CH, PON works with 3/4 inch Eaton CH™ plug-on neutral load centers.
CH, Pigtail works with 3/4 inch Eaton CH™ load centers.
1-INCH, Pigtail compatible with Schneider Homeline, Eaton BR, Siemens, and GE Powermark Gold load centers with a one-inch on-center bus bar
Supported for use with Savant Power Systems or as part of a larger Savant Pro system.
Compatible with Savant Power Director and/or Savant Panel Bridge Controller (PBC-1000), Savant Energy Monitor (SEM)
Control Capability for loads up to 7200 VA (volt-ampere)
Built-in energy monitoring: +/- .5% revenue grade accuracy / 1 sec sample time
Dynamic remote management of loads
Communicates via Bluetooth Low Energy (BLE) technology
Color LCD display for easy identification and load status
Switch positioned on front of module allows power to output to be toggled on/off manually
